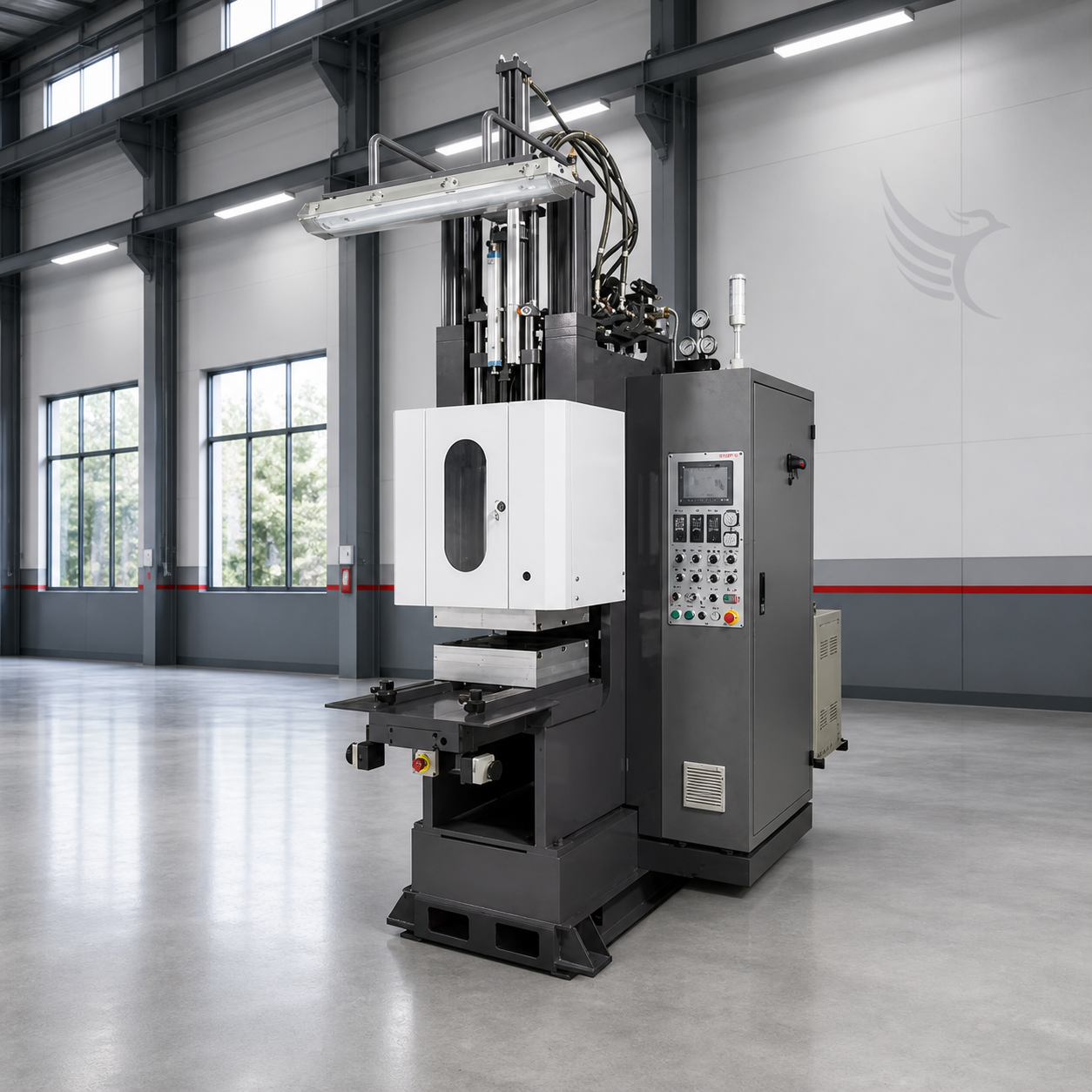

300KN C-Frame Rubber Injection Molding Machine

Availability:
Quantity:

Product Description

Features

  • The CRI Series C-frame rubber injection molding machine has two operation modes: manual and semi-automatic.

  • This machine's touch screen displays process parameters. The interface is intuitive, and it is easy to operate.

  • The injection volume, opening and clamping stroke of the rubber molding machine are accurately measured by an electronic ruler. Multi-stage speed can be adjusted during mold opening and clamping.

  • This rubber molding machine is equipped with a mold-moving device, ejection device, mechanical mold-holding device and core plate.

  • The CRI Series C-frame rubber injection molding machine uses a new, preformed structure in order to improve the efficiency of the rubber preform.

Applicable products

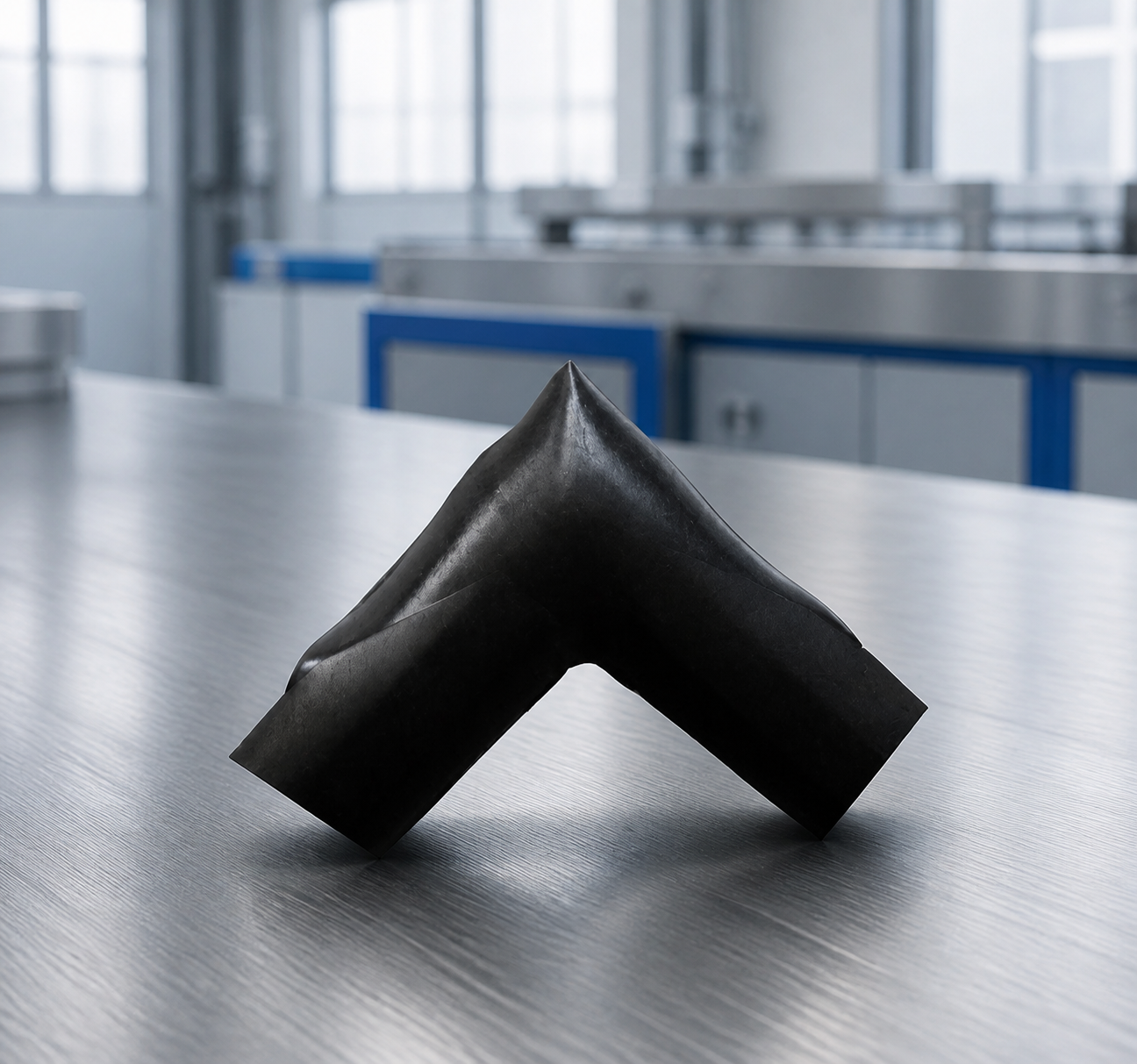

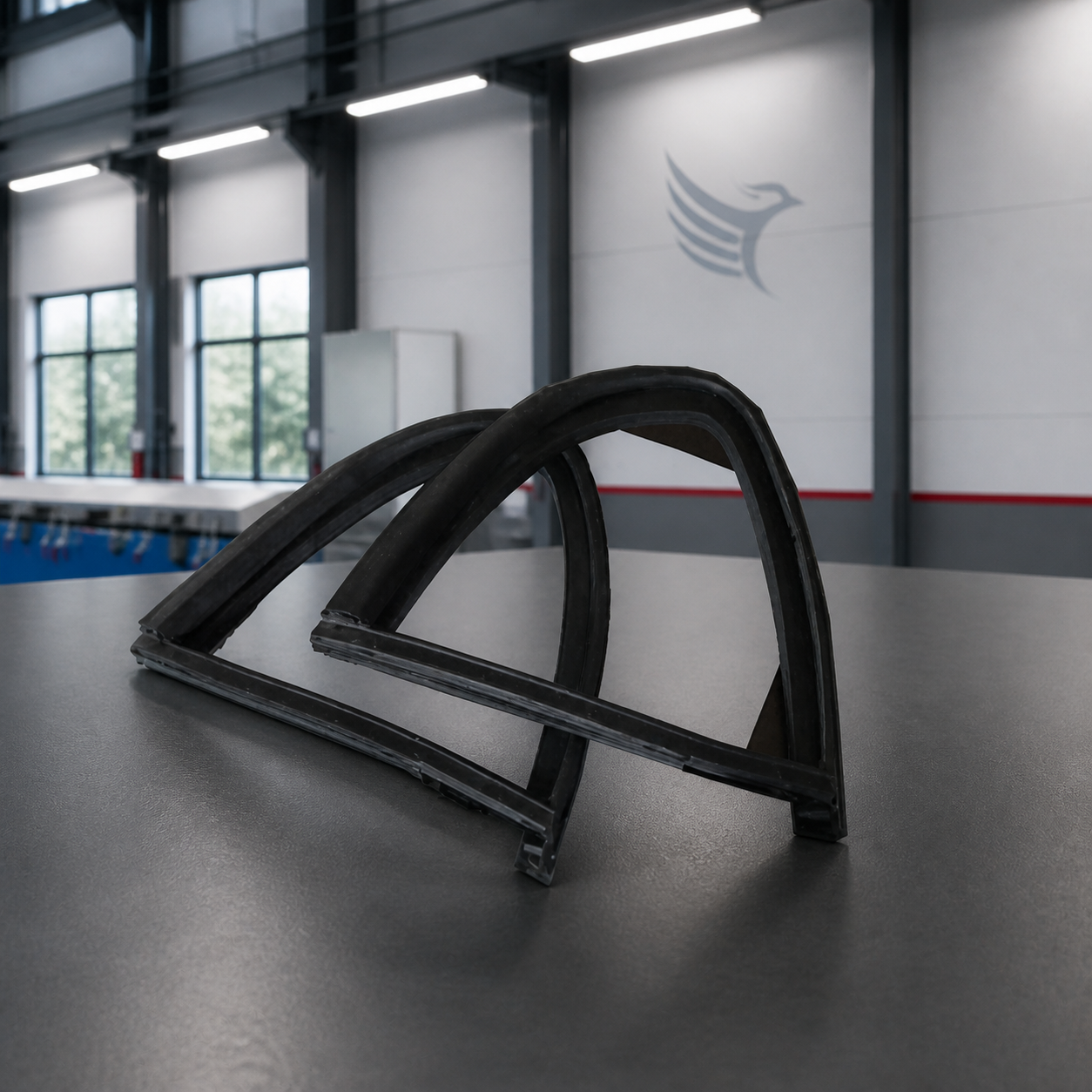

Suitable for the production of the various kinds of rubber products from natural rubber, synthetic rubber, regenerated rubber, etc. This equipment is ideal for the manufacturing of sealing belt joints or joint angles.

CRI/ES-300 C-frame Rubber Injection Molding Machine

SizeCRI/ES-300
Clamping force300 kN
Heating plate size300×300mm
Heating plate spacing350mm
Theoretical injection capacity160cc
Screw diameterΦ30mm
Screw rotational speed0~120 r/min
Plunger diameterΦ28mm
Injection pressure170 MPa
Mold opening stroke300mm
Motor power7.5 kW
Heating power4.8 kW
External dimension (L*W*H)2000X1200X3500mm
Oil tank capacity250L

CRI/ES-500 C-frame Rubber Injection Molding Machine

SizeCRI/ES-500
Clamping force500 kN
Heating plate size400×400mm
Heating plate spacing380mm
Theoretical injection capacity300cc
Screw diameterΦ30mm
Screw rotational speed0~120 r/min
Plunger diameterΦ38mm
Injection pressure170 MPa
Mold opening stroke350mm
Motor power11 kW
Heating power9.5 kW
External dimension (L*W*H)2300mmX1500mmX4000mm
Oil tank capacity280 L

CRI-III-ES-300 C-frame Rubber Injection Molding Machine

SizeCRI-III-ES-300
Clamping force300 kN
Heating plate size300×350 mm
Heating plate spacing370 mm
Theoretical injection capacity160 cc
Screw diameterΦ30mm
Screw rotational speed0~120 r/min
Plunger diameterΦ32 mm
Injection pressure170 MPa
Mold opening stroke295 mm
Motor power7.5 kW
Heating power5.4 kW
External dimension (L*W*H)2250mmX1200mmX3150mm
Oil tank capacity280 L

CRI-III-ES-300 (with sliding device) C-frame Rubber Injection Molding Machine

SizeCRI-III-ES-300 (with sliding device)
Clamping force300 kN
Heating plate size300×350 mm
Heating plate spacing370 mm
Theoretical injection capacity160 cc
Screw diameterΦ30 mm
Screw rotational speed0~120 r/min
Plunger diameterΦ32 mm
Injection pressure170 MPa
Mold opening stroke295 mm
Motor power7.5 kW
Heating power7.2 kW
External dimension (L*W*H)2250mmX1200mmX3150mm
Oil tank capacity280 L

Related
injection press, precision molding, rubber machinery
