Product Description

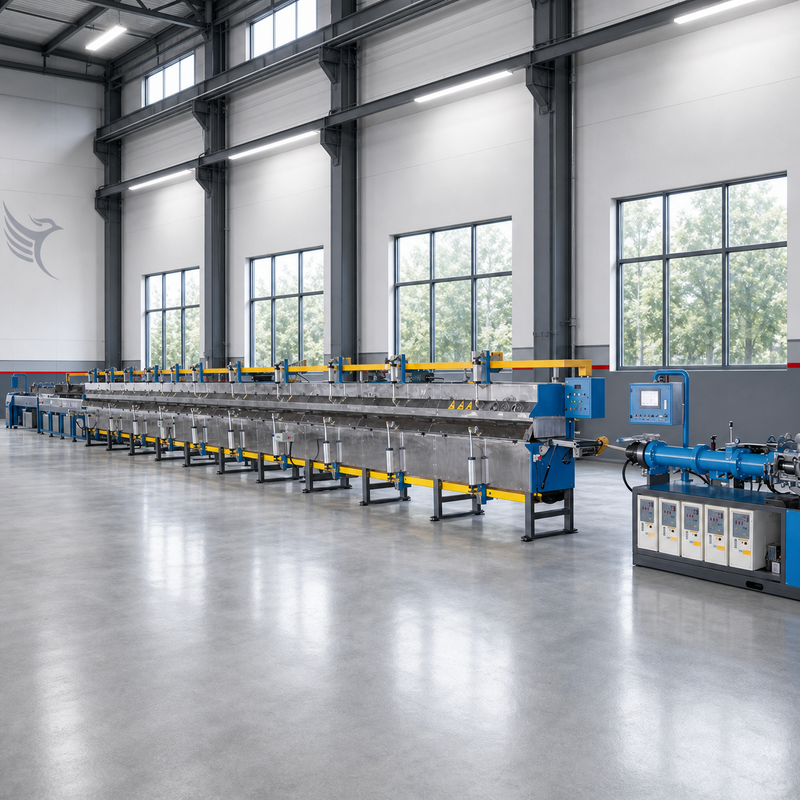

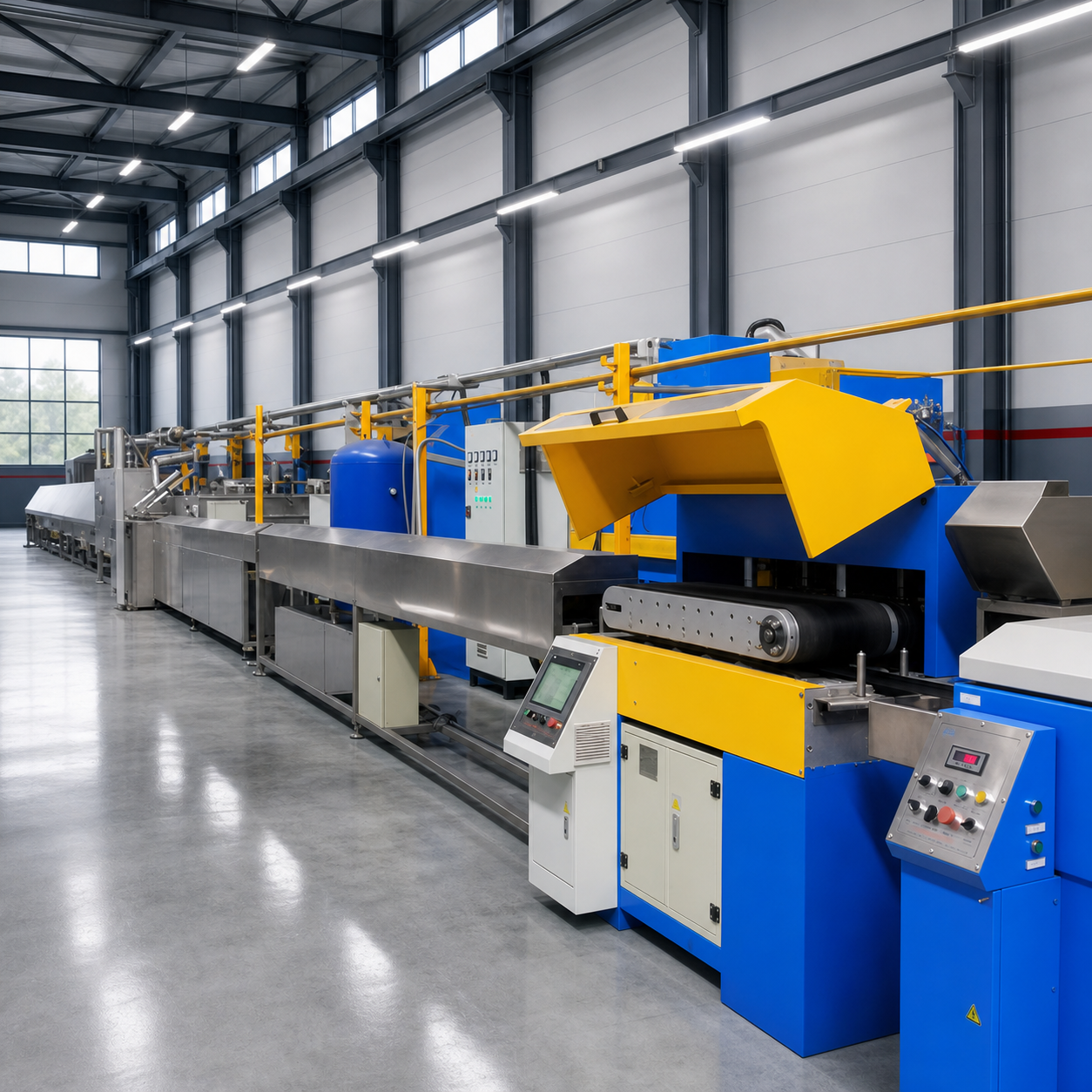

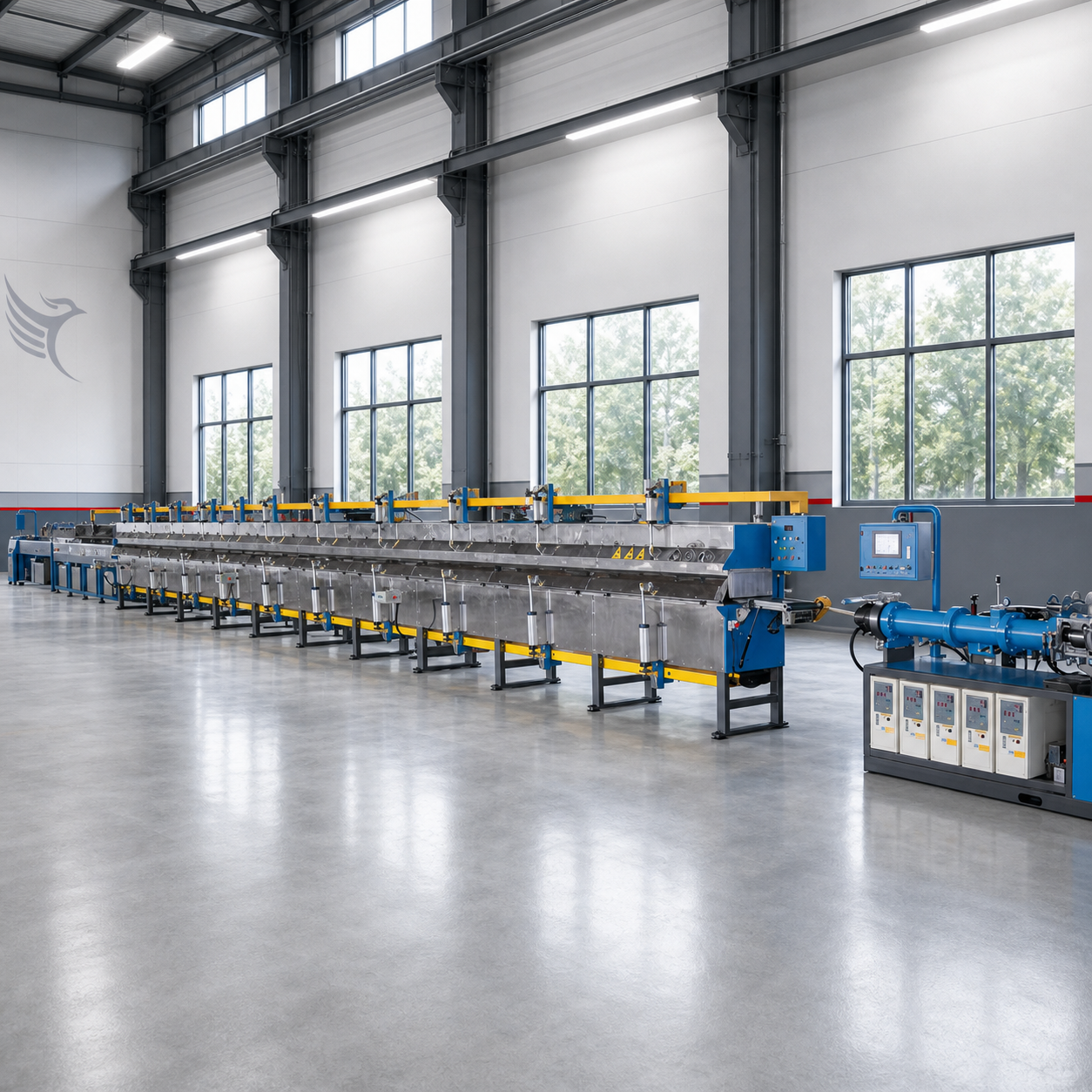

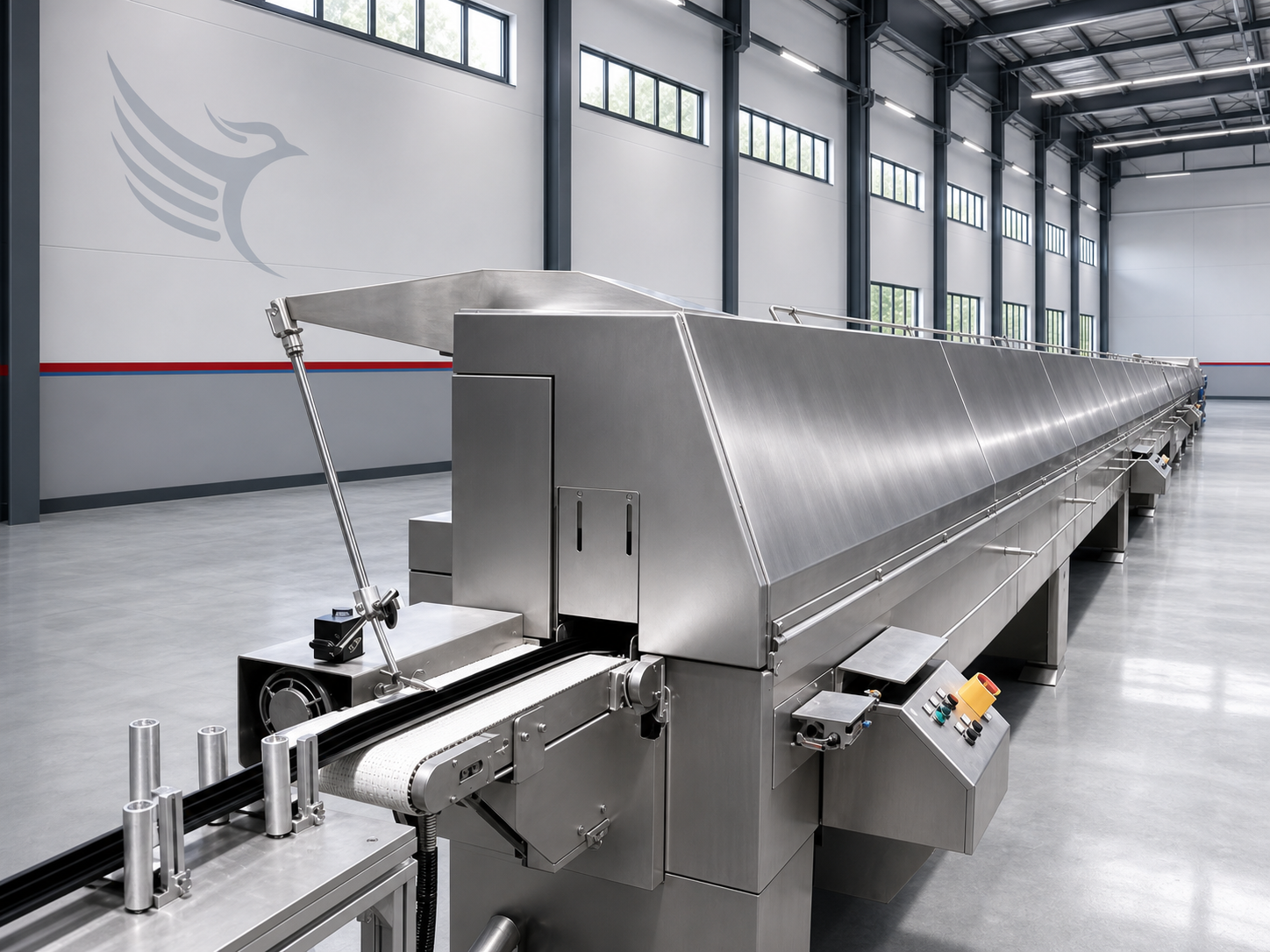

90mm salt bath production line includes the following equipment
ITEM | QTY (SET) |

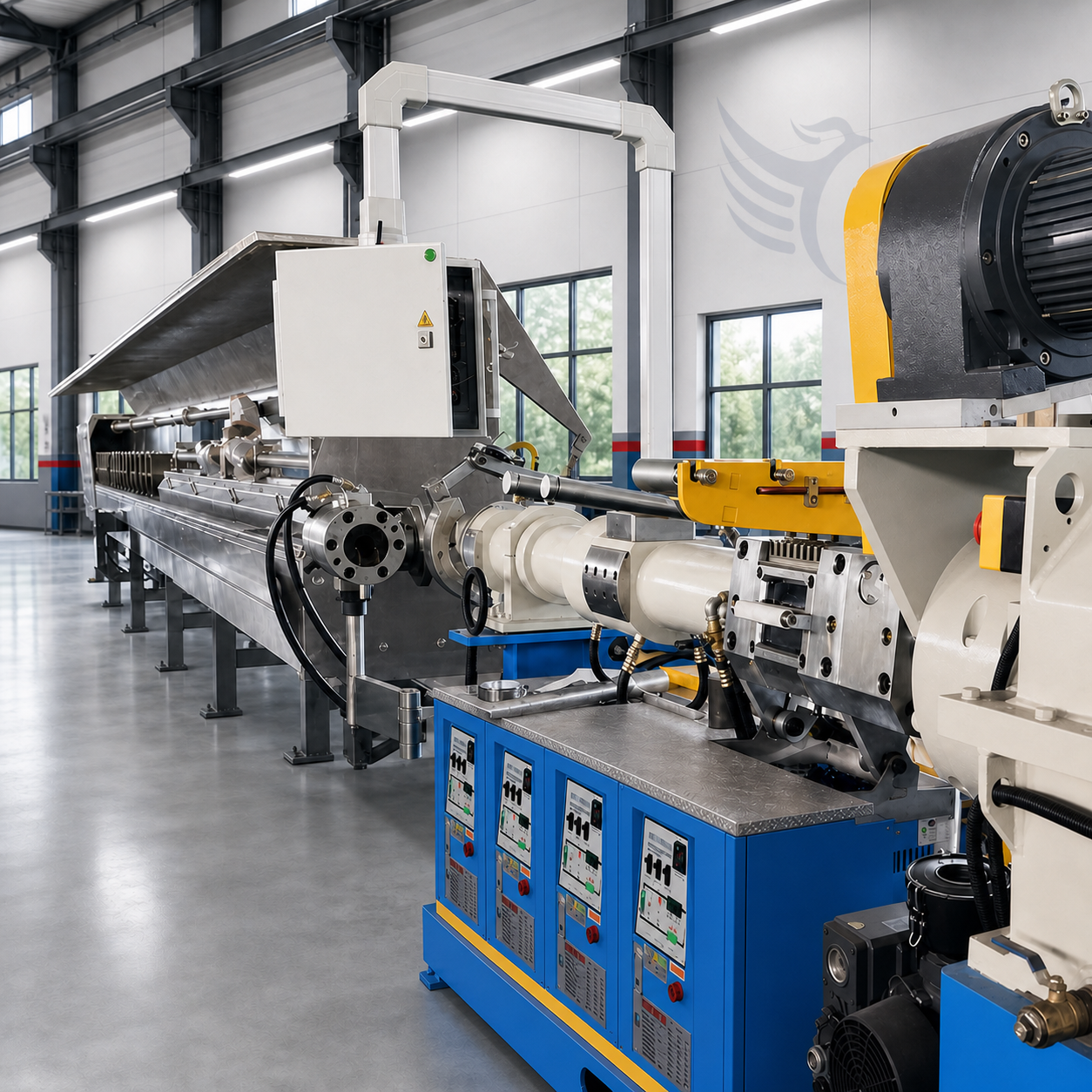

1. Ȼ90 mm20D cold feed vacuum extruder | 1 |
2. 1000mm Inlet short delivery | 1 |
3. 3m Roller wheel rolling soaking | 1 |
4. 6m Roller wheel rolling soaking tank A | 1 |
5. 8m Roller wheel rolling soaking tank B | 1 |
6. Salt Dissolving Furnace (gas heating) | 1 |
7. 4m heating and cleaning machine | 1 |
8. 4.5m cooling water tank(Including hot and cold interactor) | 1 |
9. 6m cooling water tank | 1 |
10. Puller | 1 |
11. Auto length fixed cutter with collection table | 1 |
12. PLC | 1 |
Equipment Technical Specifications:
Serial number Item name Model specification |
1 Equipment center height 1050±20mm |
2 Device orientation right to left |
3 Device color: upper white and lower blue |
4 Equipment power supply Three-phase 380V/50HZ |
5 Required steam source 0.5-0.6MPa |
6 Required water source 0.2MPa |
7 Low-voltage electrical appliance brand Schneider |
8 Motor brand Siemens |
9 Inverter brand Siemens |
10 Production line speed 10-15m/min |
11 Thermostat brand Omron |
12 Heating method Natural gas heating |
13 Equipment working environment temperature 0-40℃, humidity 50%-90% |
14 Emergency stop device All powered equipment is equipped with emergency stop device |
15 Action indicator color Power indicator: white, running indicator: green; fault indicator: red |
16 Parts installed on the control box Start, stop buttons and other operation buttons |
17 The equipment meets the production process, the equipment power supply gas circuit layout is reasonable, and the direction is horizontal and vertical; it is convenient for employees to operate |
18 The electric adopts a control cabinet, which includes a drive system, a joint control system, a speed control system, etc. |
19 The electric control cabinet is arranged in the bracket, which does not affect the movement of the operator, and the control panel bracket is made of aluminum profile |
20 Wiring must have a certain margin, use color code to distinguish purposes and have terminal marks |
21 Baking paint treatment for all iron structures, anti-rust treatment for the surface of all finishing parts |
22 Product protection needs to reach IP54 level |
