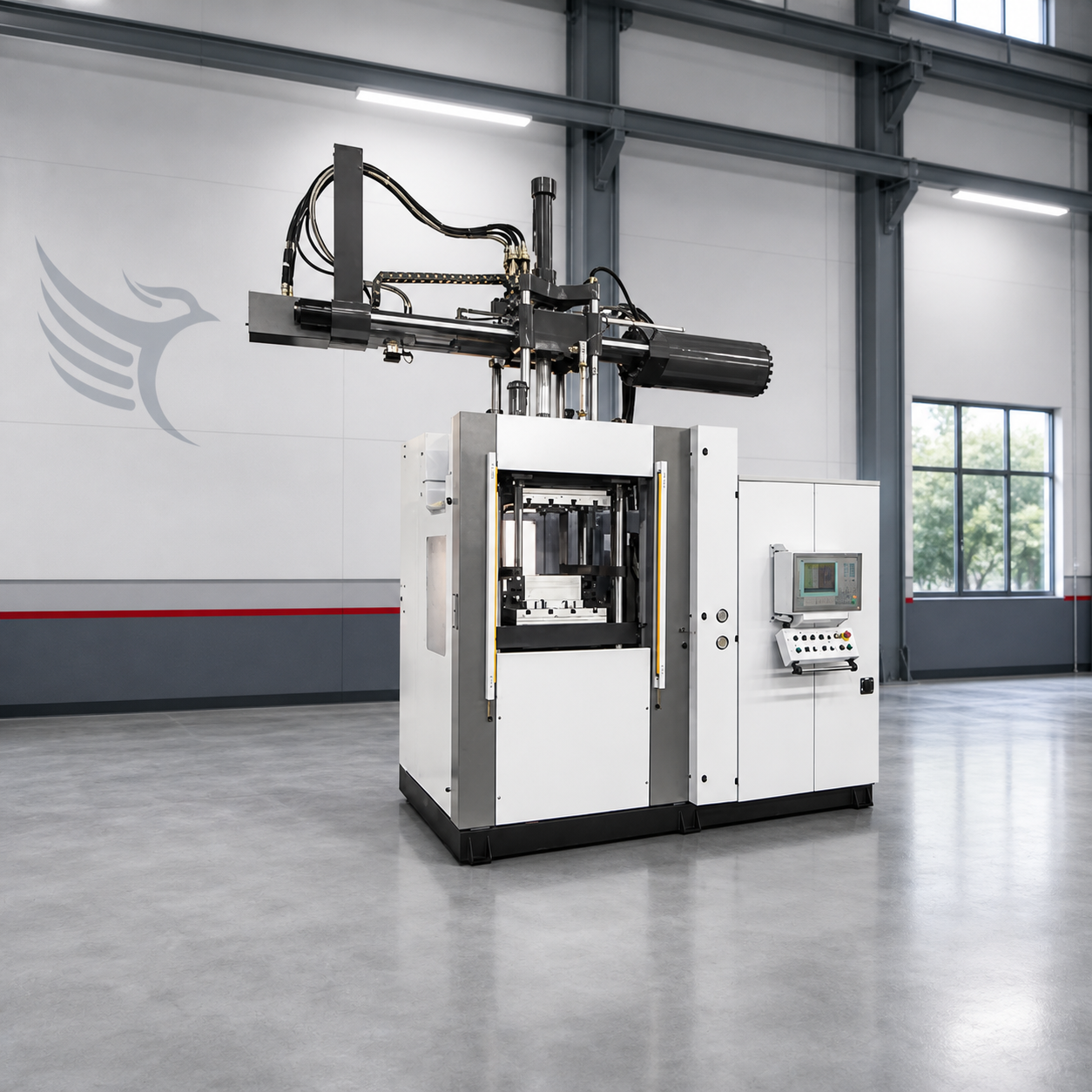

2500KN Rubber Injection Molding Machine

Availability:
Quantity:

Product Description

Features

  • The rubber injection molding machine has two operation modes: manual and semi-automatic. Users can choose the operation mode according to their application needs.

  • Due to PLC control system, this injection machine features a stable and reliable operation with a low failure rate. Customers can choose an Omaron or Siemens PLC system.

  • The CHAP-2500 Rubber injection molding machine features a four-cylinder parallel injection structure, which improves the balance during rubber injection, and cuts down on the longitudinal space of the injection component. As a result, it is easy to remove the injection plunger.

  • This machine's electrical control system ensures stable operation.

Applicable products

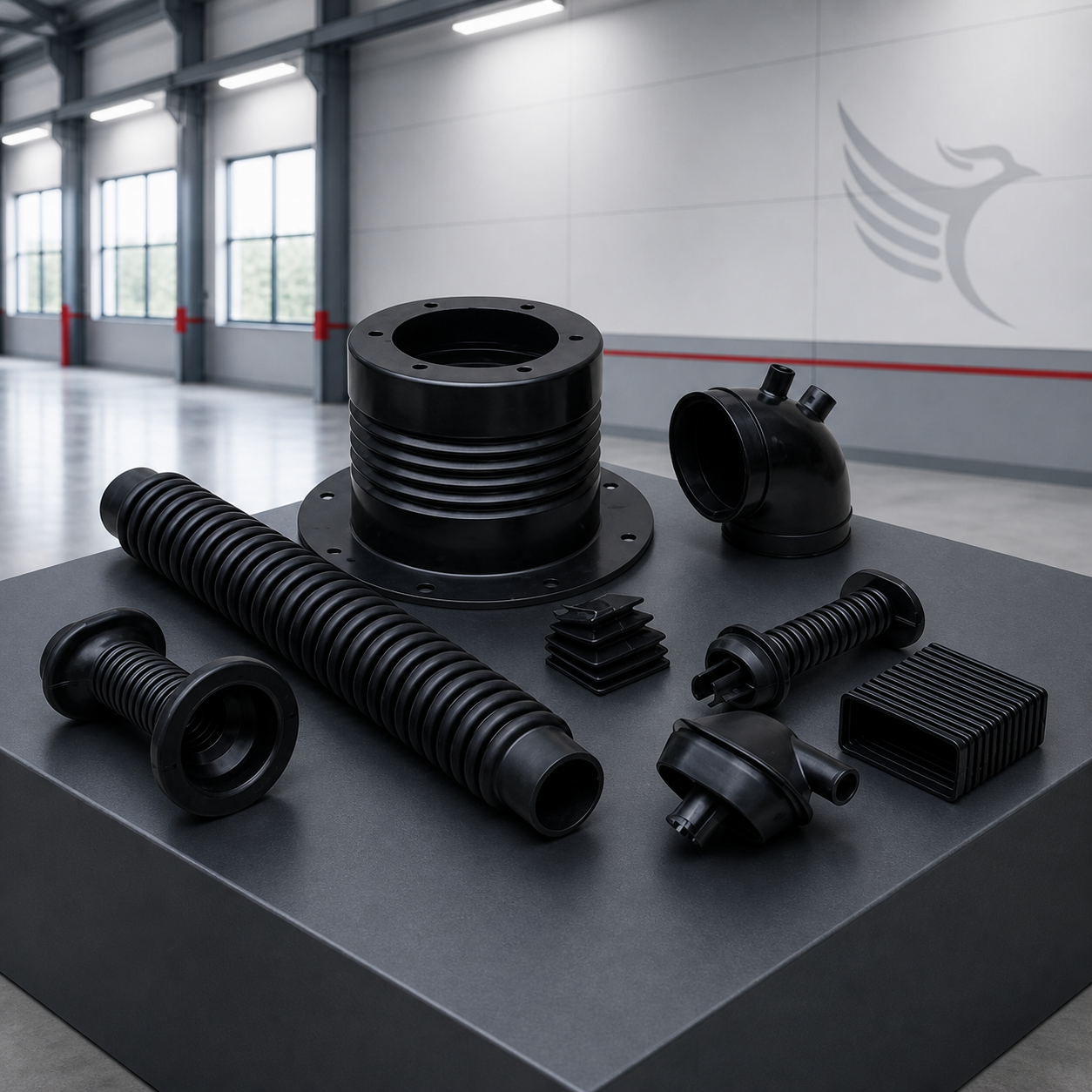

Multilateral, polygonal and other complex rubber products, especially sporting equipment, medical suppliers, automotive supplies, electrical products, insulators and other precise electric power products.

Technical Specifications of Rubber Injection Molding Machine

Item ParametersCHAP-2500
Clamping force2500 kN
Heating Plate Size560×630 mm×mm
Heating Plate Space600 mm
Theoretical Injection Capacity2700 cm3
Screw DiameterΦ45 mm
Screw Rotational Speed0~120 r/min
Plunger DiameterΦ95 mm
Injection Pressure173 MPa
Mold Opening Stroke500 mm
Motor Power15 kW
Heating Power16 kW
External Dimension (L×W×H)1800X4200X4000
Oil Tank Capacity400 L
