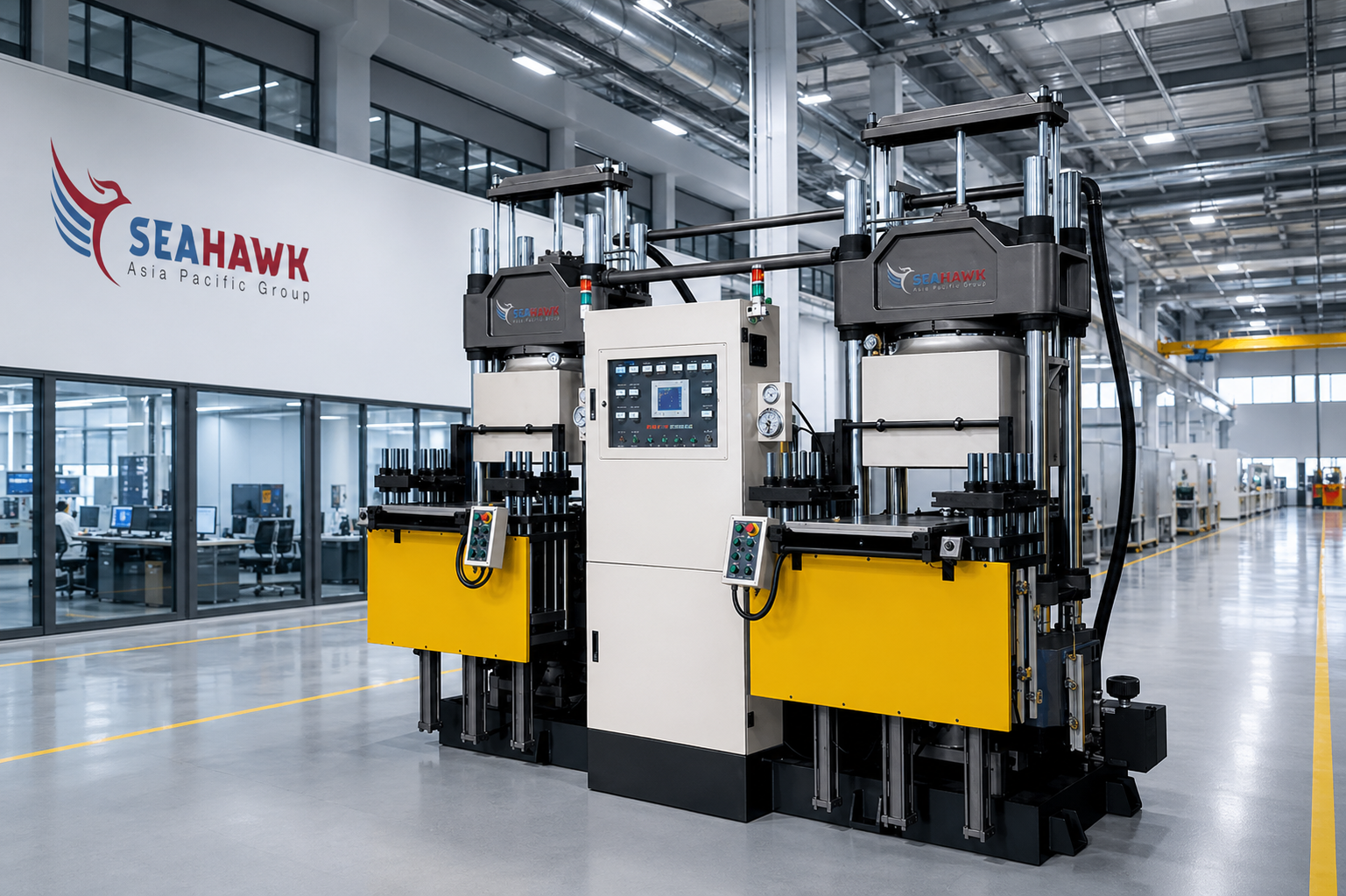

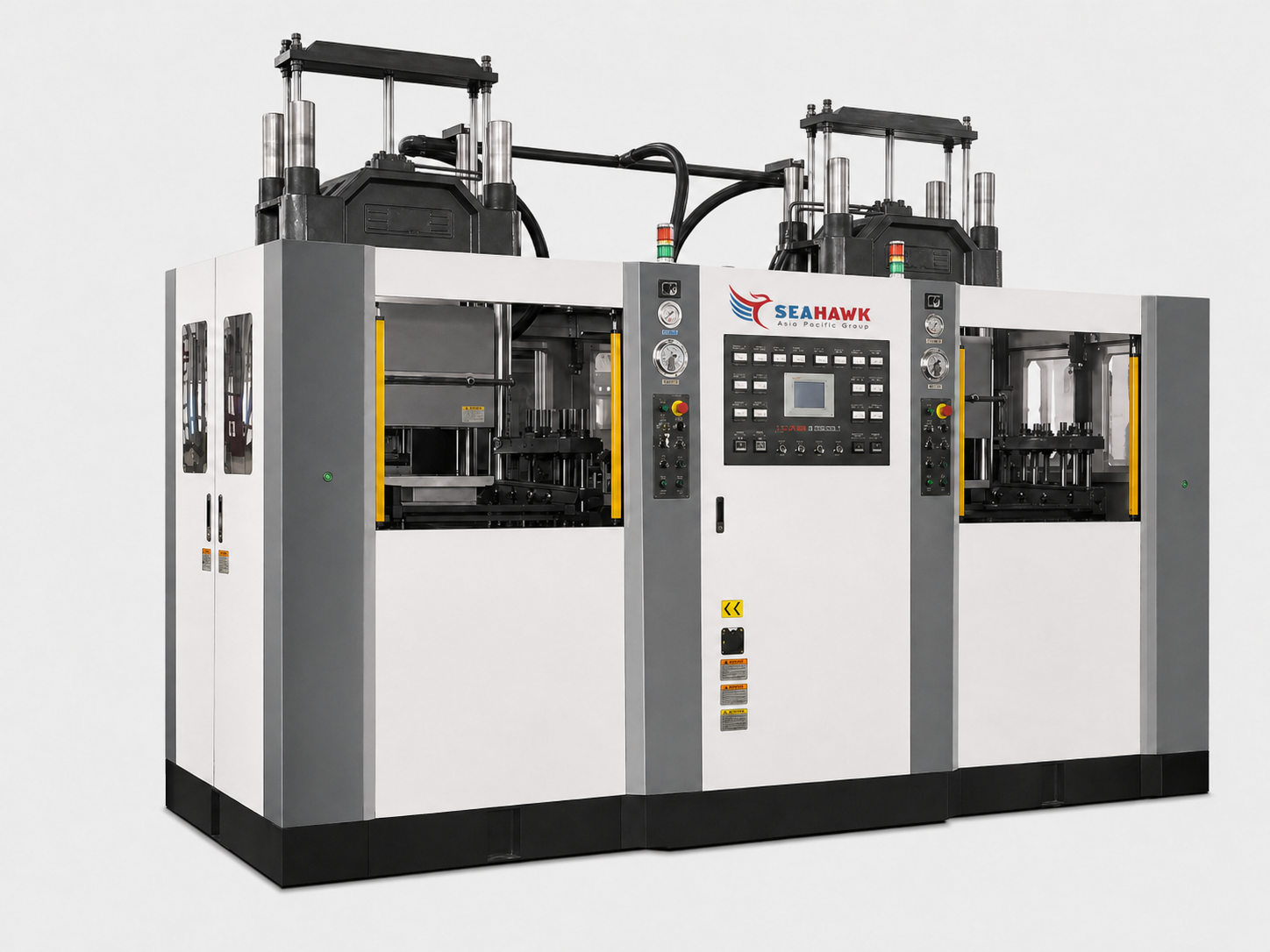

C-XLB-D800×950 4000KN Vacuum Rubber Vulcanizing Machine

C-XLB-D800x950/DZ4000.
Heating plate size: 800 mm×950 mm.
Clamping force: 4000 KN.
Availability:
Quantity:

Product Description

Product introduction
C-XLB-D800x950/DZ4000.
Heating plate size: 800 mm×950 mm.
Clamping force: 4000 KN.

Applications
CHAP vacuum rubber vulcanizing machine is suitable for producing difficult-to-mold rubber products (like those with complex ) as well as rubber products that are easy to produce bubble.

Features

  • The C-XLB-D800×950 vertical rubber vulcanizing machine is equipped with a fully enclosed security screen and infrared light curtain protection device, giving the equipment a higher level of safety during operation.

  • This vulcanization machine's heating plate is heated using an electric heating pipe and uses PID closed-loop control to strictly monitor the heating plate temperature uniformity.

  • This machine's opening and clamping stroke is precisely measured and controlled with the use of an inductive proximity switch. The stroke can be adjusted to multiple different speed settings.

  • This vulcanization machine is designed with a high negative pressure vacuum cover to make molds in a nearly vacuum environment, therefore improving its mold exhaust performance and product quality.

  • Because of vacuum cover, the degree of vacuum can quickly reach above -700mmHG, which is most suitable for difficult to form, high precision products.

  • The vacuum storage tank features a base type design with a large storage space.

Technical Specifications of Vacuum Rubber Vulcanizing Machine


C-XLB-D800x950/DZ4000
Clamping force4000 KN
Clamping stroke400 mm
Rapid clamping speed≥40 mm/s
Heating plate size800 mm×950 mm
Heating plate spacing250~500 mm
Max temperature250 ℃
Vacuum cover stroke350 mm
Max mould thickness340 mm
Ejector stroke400 mm
Max ejector force120 KN
Motor power7.5 KW
Heating power42KW
External dimension (LxWxH)2550×3800×(3600~3850)
Oil tank capacity400 L

As a professional vacuum rubber vulcanizing machine manufacturer in China, CHAP is ISO9001 certified due to its production and operation in rigid compliance with international standards. With superior quality, reliable performance, and high efficiency, our products, such as plate rubber vulcanizing machine, rubber transfer molding machine, custom rubber machine, and more, are well received by global customers in South America, Southeast Asia, East Asia, and Middle East, etc.Here we have convenient access to any kind of transportation, which not only can save our transportation cost of raw materials, but also can lower your purchasing cost. If you have any needs about our products, please contact us via email or contact address available on this website.We are ready to serve you.
