Product Description
Product introduction

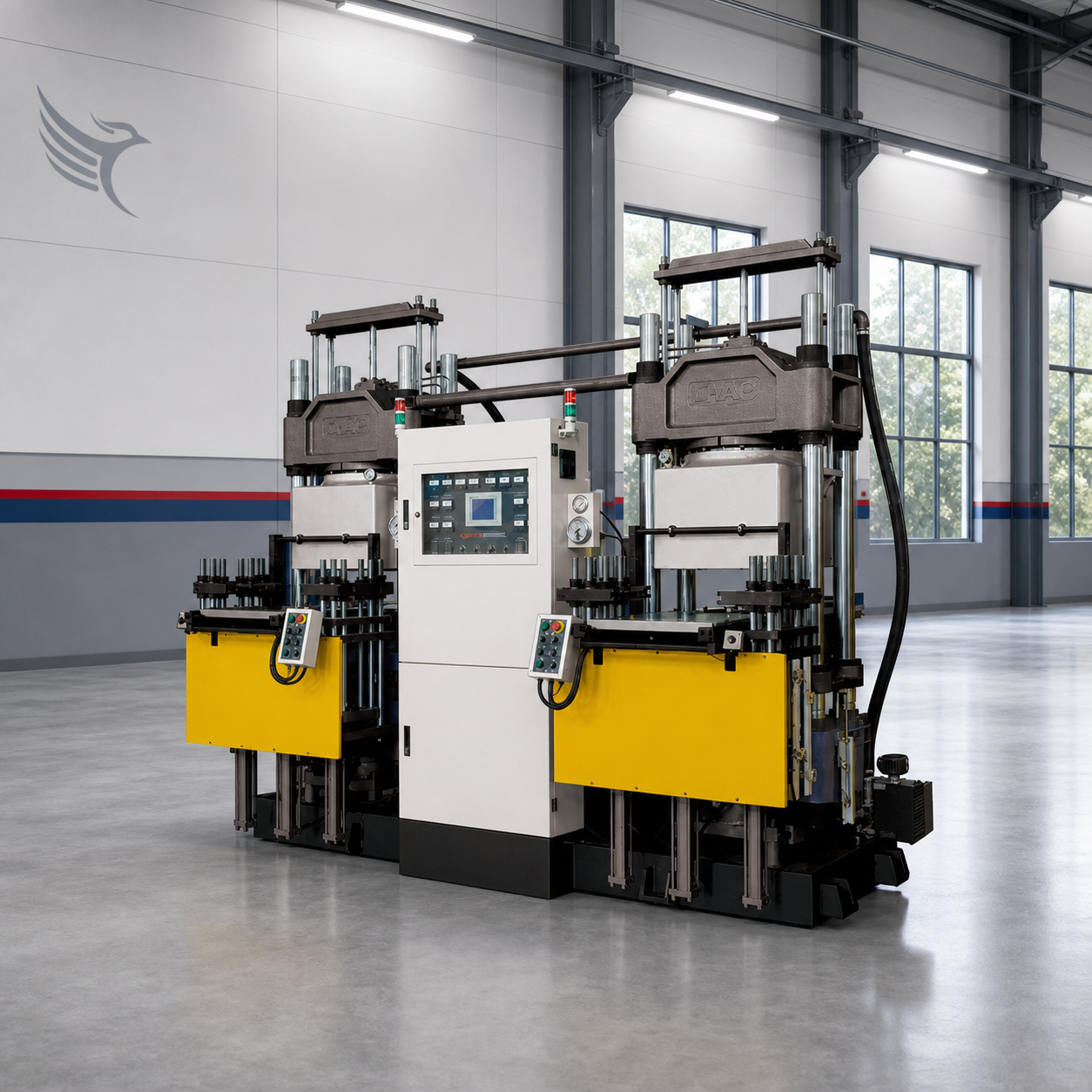

H-XLB-D505x510/DZ2000.
Heating plate size: 505 mm×510 mm.
Clamping force: 2000 KN.
Applications

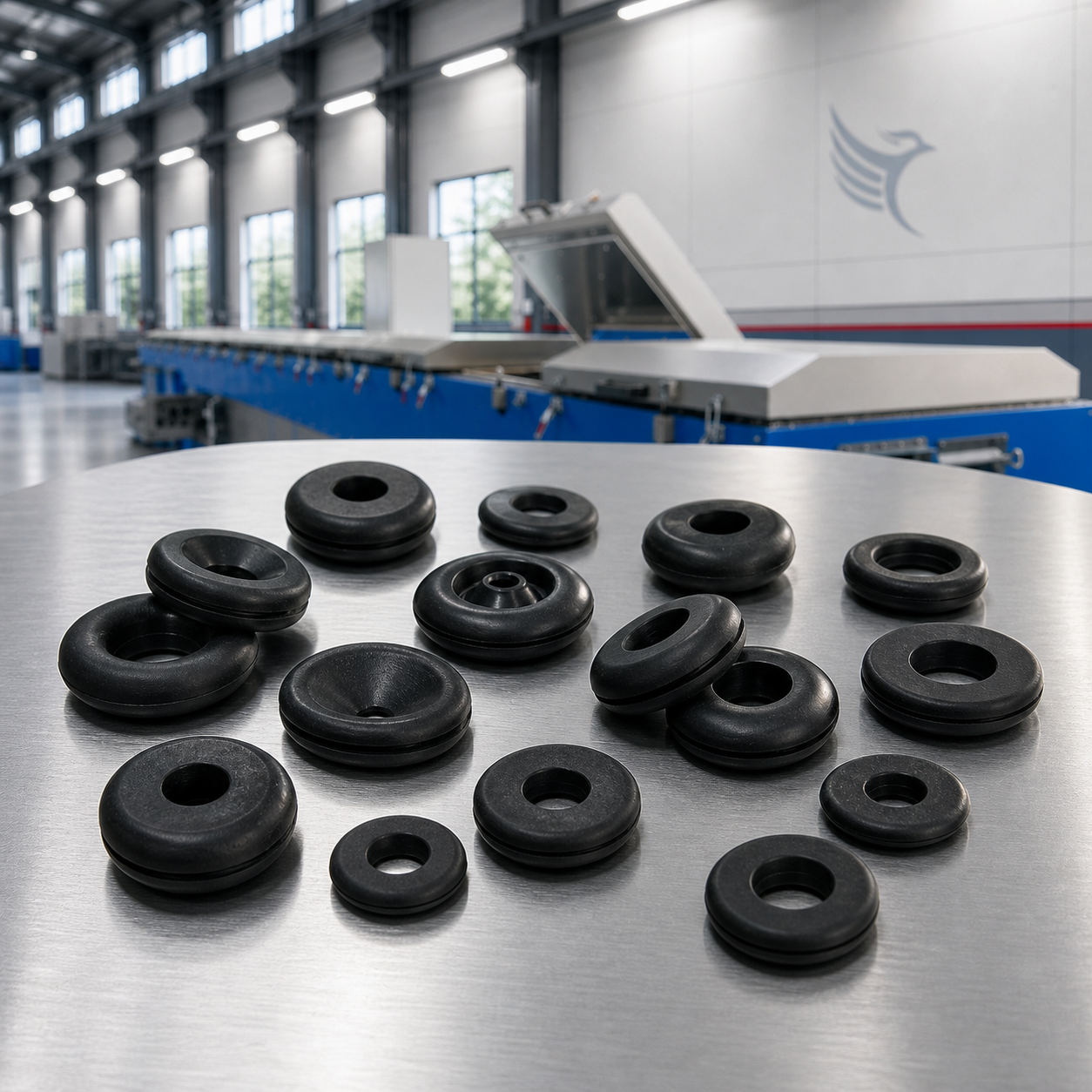

CHAP vacuum rubber vulcanizing machine is great for producing rubber molded products that are of complex shapes and difficult to mold as well as rubber products that are easy to produce bubble.
Features
H-XLB-D505x510/DZ2000 vacuum rubber vulcanizing machine has two operation modes: manual and semi-automatic.
This molding machine is equipped with a programmable PLC control system, thus ensuring a stable and reliable operation with a low failure rate.
Equipped with a fully enclosed safety screen and an infrared light curtain protection device, the operation safety is greatly enhanced.
This rubber molding machine features an electric hydraulic proportional hydraulic system with double power, double oil pumps and double motor, allowing it to carry out independent operation.
The vacuum cover design allows for a high degree of vacuum at -700mmHG. This makes the molding machine suitable for hard to form, high precision rubber products.
The rubber vulcanizing machine uses a highly efficient German vacuum pump.
Technical Specifications of Vacuum Rubber Vulcanizing Machine
H-XLB-D505x510/DZ2000 | H-XLB-D505x510/DZ2000(Set) | |
Clamping force | 2000 KN | 2000 KN |
Clamping stroke | 250 mm | 250 mm |
Rapid clamping speed | ≥50 mm/s | ≥50 mm/s |
Heating plate size | 505 mm×510 mm | 505 mm×510 mm |
Heating plate spacing | 200~400mm | 200~400mm |
Max operating temperature of heating plate | 250 ℃ | 250 ℃ |
Vacuum cover stroke | 250 mm | 250 mm |
Max mould thickness | 240 mm | 240 mm |
Ejector stroke | 300 mm | 300 mm |
Max ejector force | 60 KN | 60 KN |
Motor power | 5.5 KW | (5.5+5.5) KW |
Heating power | 14.7 KW | (14.7+14.7) KW |
External dimension (LxWxH) | 2050mm×2470× (2840~2940)mm | 3680mm×2470× (2840~2940)mm |
Oil tank capacity | 250 L | 350 L |
